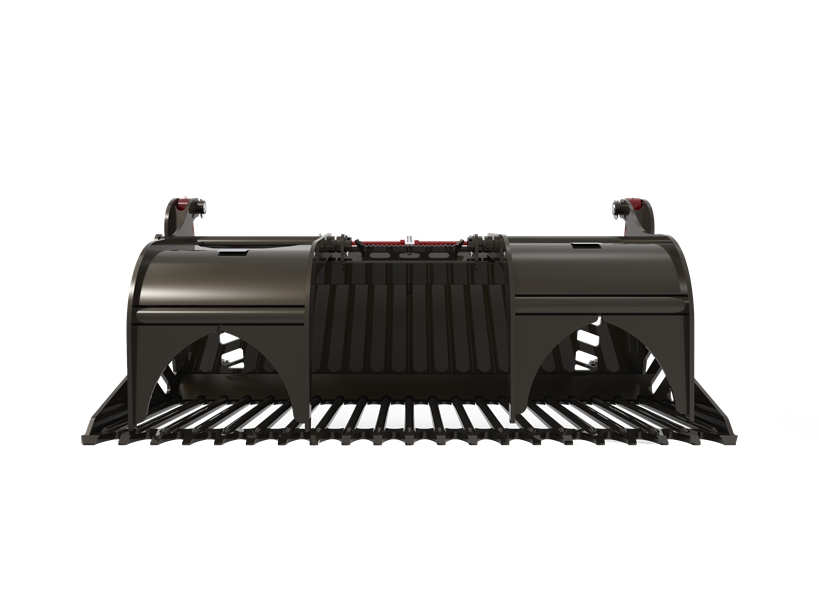

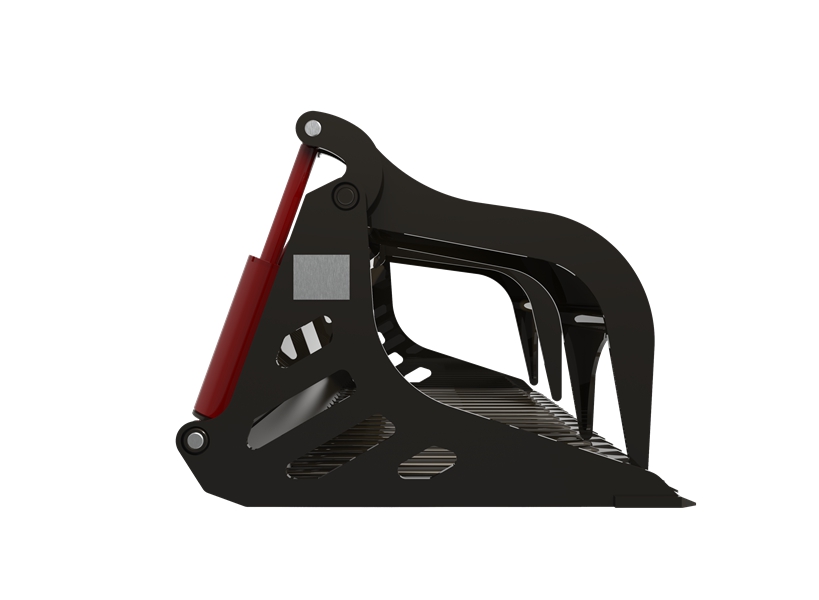

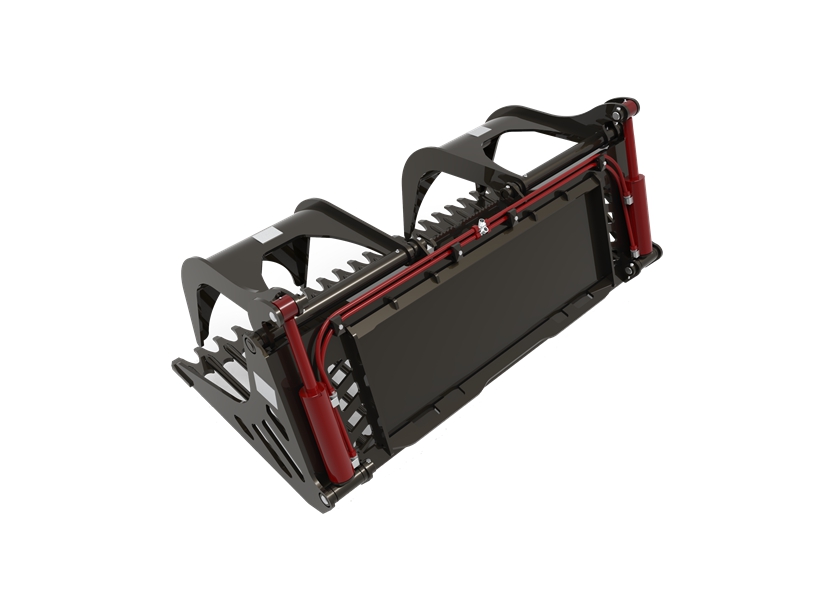

Hydraulically operated the grapple is fitted to the rock bucket to provide a grabbing arm to trap an contain debris.
Type:
S-RRGB
Surface Treatment:
Black Painting or As Request
Hydraulically operated the grapple is fitted to the rock bucket to provide a grabbing arm to trap and contain debris.
It is ideal for hard to handle loads such as demolition clean up logos, rock, shrubs, bushes and waste management.
Specification:
Type | Clamp No. | Width(W)/mm | Harrow Dia./mm | Opening Range(OR)/mm | Weight/kg |
S-RRGB1070(42IN)-MP600 | 1 | 1070 | 25 | 0-980 | 131 |
S-RRGB1120(44IN)-MP600 | 1 | 1120 | 25 | 0-980 | 134 |
S-RRGB1220(48IN)-MP600 | 1 | 1220 | 25 | 0-980 | 141 |
S-RRGB1120(44IN)-MP910 | 1 | 1120 | 30 | 0-980 | 198 |
S-RRGB1680(66IN)-MP1220 | 2 | 1680 | 30 | 0-980 | 241 |
S-RRGB1780(70IN)-MP1220 | 2 | 1780 | 30 | 0-980 | 257 |
S-RRGB1880(74IN)-MP1220 | 2 | 1880 | 30 | 0-980 | 373 |
S-RRGB1980(78IN)-MP1220 | 2 | 1980 | 30 | 0-980 | 417 |
S-RRGB2080(82IN)-MP1220 | 2 | 2080 | 30 | 0-980 | 433 |
