Mattson 25HP track skid steer loader is a ideal design with a skid steer structure two swing-oil tank ,the behind walking is very convenient for user to operate. Hydraulic pilot joy stick .
Product Details
Mattson 25HP track skid steer loader is a ideal design with a skid steer structure two swing-oil tank ,the behind walking is very convenient for user to operate. Connecting attachments by Quick Attach could finish any works in homemade,farming,garden,small construction,municipality
maintenance,landscape,arboriculture,grounds maintenance,etc....
Product Parameter
Model | ML525 |
Moving type | Crawler |
Dimension(L*W*H) | 1976mm*1104mm*1352mm |
speed | 5.6 km/h |
Rated loading capacity | 416 kg |
Tipping load | 832 kg |
Max.reach | 1883 mm |
Displacement | 1.123L |
Weight | 1060 kg |
Hydraulic oil flow | 33.9 L/min |
Oil tank capacity | 35 L |
Pump Capacity | 53.4L/min |
System Relief @ Quick Couplers | 210 Bar |
Battery capacity | 45Ah |
voltage | 12V |
Engine | Kubota, D1105, 25HP |
Engine type | Diesel, 3 cylinders, water cooled |
Rotation speed | 3000r/min |
Product Features
1. 25.2 HP TURBO CHARGE ENGINE
2.Standard quick coupling system can use hundreds of different attachments.
3.Extremely compact design, light weight, easy to transport and smart in narrow working environment.
4. No DPF

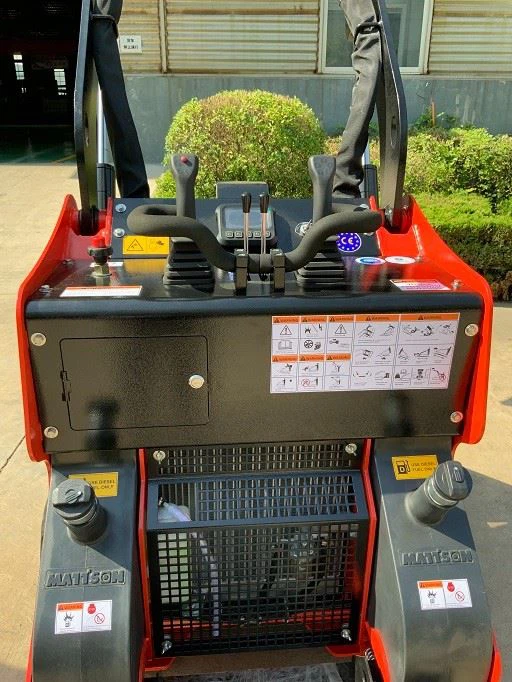

5.Reasonable arrangement of the control levers and the hand hooking bar,makes the operation simple and safe with your hands.
6.High altitude performance

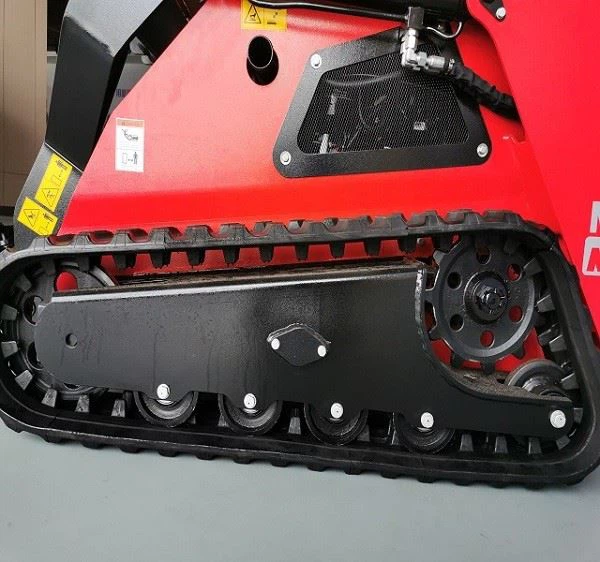

7. Robust undercarriage welded to main frame
8.Grease track tension design .
