The Mattson 30HP reack skid steer loader is multi-purpose and powerful. Widely used in industrial and mining enterprises such as highway municipal administration, port and dock, animal husbandry, landscaping, construction sites, coal and electricity.
Product Details
The Mattson 30HP reack skid steer loader is multi-purpose and powerful. Widely used in industrial and mining enterprises such as highway municipal administration, port and dock, animal husbandry, landscaping, construction sites, coal and electricity.
Product selling points:
1 Equipped with brand engine, strong power, environmental protection and energy saving;
2 Suitable for special occasions such as narrow spaces;
3 Many attachments to ensure stable operation of equipment;
4 Suitable for use in different working conditions on the same construction site, saving transition time and high working efficiency;
5 Operation is simple and easy to understand, daily maintenance is convenient and easy;
6 The international standard ergonomic cab is safe and reliable.
Product Specification
Model | ML530 |
Operating weight | 320 kg |
Overall operating height | 2656 mm |
Engine | YANMAR // 3TNV82A-BDSA2 |
Power | 30HP |
Bucket capacity | 0.2m³ |
Height to bucket hinge pin | 1879 mm |
Height to top | 1257 mm |
Minimum distance between bucket hinge point and ground | 206 mm |
Overall length without bucket | 1942 mm |
Overall length with bucket | 2603 mm |
Dumping angle at maximum height | 36° |
Dumping height | 1270 mm |
Dumping reach | 750 mm |
Rollback of bucket on ground | 23° |
Rollback of bucket at full height | 99° |
Wheelbase | 955 mm |
Ground clearance | 140mm |
Angle of departure | 20° |
Turning radius front with bucket | 1610 mm |
Ground Clearance-under platform | 180 mm |
Tread width,centerline to centerline | 850 mm |
Overall width | 1050 mm |
Bucket width | 1250 mm |

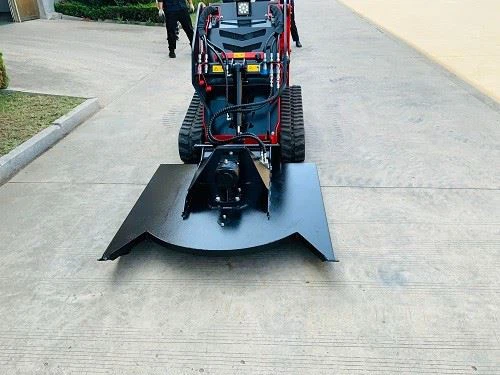

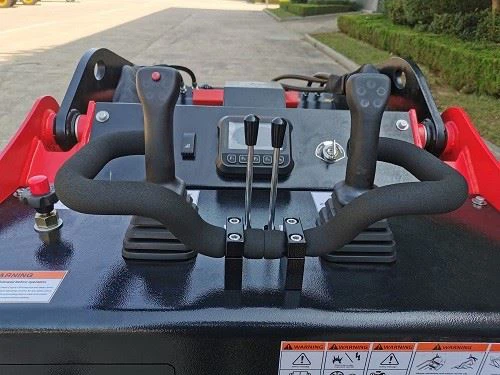

Detailed Images
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
