Mini Wheel Skid Steer Loader

Product Description

Product Details

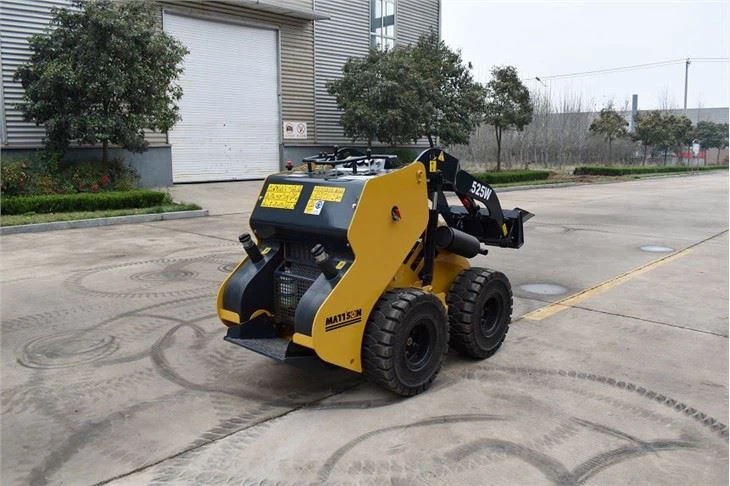

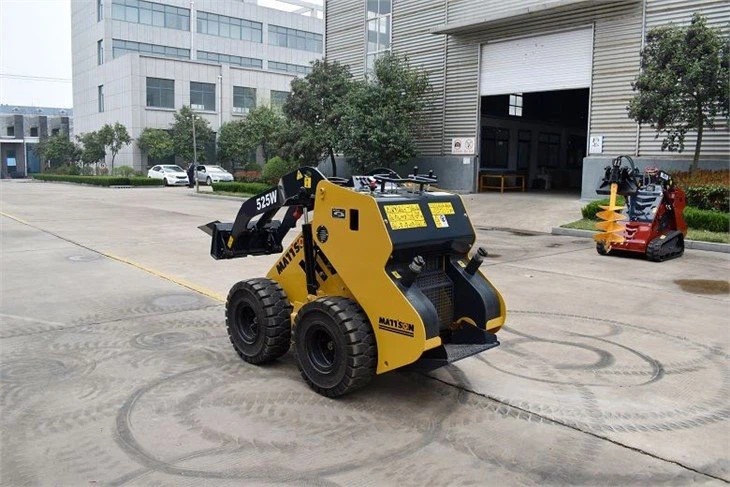

Mini wheel skid steer loader are four-wheeled or tracked vehicles with the wheels mechanically locked in synchronization on each side, and where the left-side drive wheels can be driven independently of the right-side drive wheels. The wheels typically have no separate steering mechanism and hold a fixed straight alignment on the body of the machine. Turning is accomplished by differential steering, in which the left and right wheel pairs are operated at different speeds, and the machine turns by skidding or dragging its fixed-orientation wheels across the ground.


Mini Wheel Skid Steer loaderAdvantages:

1. Small Size, convenience in transporting by pick-up, easy operating in narrow place.

2. Various kinds of attachments

3. Great Hydraulic Flow Rate, fast for attachments to work.

4. With no cab, with better view field

5. Easy changing the attachments

6. Easy controlling with just hands.


Product Specifications

Model

ML525W

Engine

Kubota // D1105-E4B-CSR-1

Fuel/Cooling

Diesel/Liquid

Horsepower(SAE Gross)

18.5 KW

Maximum Governed RPM

3000 RPM

Number of Cylinders

3

Travel Speed

10.8 km/h

Weight (no attachment)

935 kg

Operating weight

374 kg

Tipping Capacity

748 kg

Fuel tank capacity

35 L

L * W * H

1969*1080*1297 mm


Product Details



mtxx03mtxx02
mtxx01mtxx05
mtxx04mtxx06


Mini wheel skid steer loader Attachments

MATTSON mini wheel skid steer loader is a versatile tool carrier that's fully equipped to run numerous job-matched attachments, including:

backhoe,hydraulic breaker,pallet forks,angle broom,sweeper,auger,mower,

snow blower,stump grinder,tree spade,trencher,dumping hopper,pavement miller,

ripper,tillers,grapple,tilt,roller,snow blade,wheel saw,cement mixer,wood chipper machine, etc..
