25HP Wheel Skid Steer Loader

25HP Wheel Skid Steer Loader

Product Description

25HP wheel skid steer loader gets its name from the way it turns. The angle of the wheels or tracks is fixed, so they will only point straight ahead. The wheels or tracks on each side of the vehicle are locked in synchronization with each other and have their own engines.

Inquire Now

Add To Cart

Product Description

Product Details

Because the wheels are fixed, you cannot steer by angling the wheels in a different direction. Instead, you steer by speeding up either the left or right side of the vehicle, causing the wheels to drag — or skid — across the ground as the skid steer turns. This type of steering is known as differential steering, and it allows you to make zero-degree radius turns, a helpful feature in tight spaces and when the task calls for precision. Of course, the driver must be trained or experienced in differential steering to operate the skid steer.

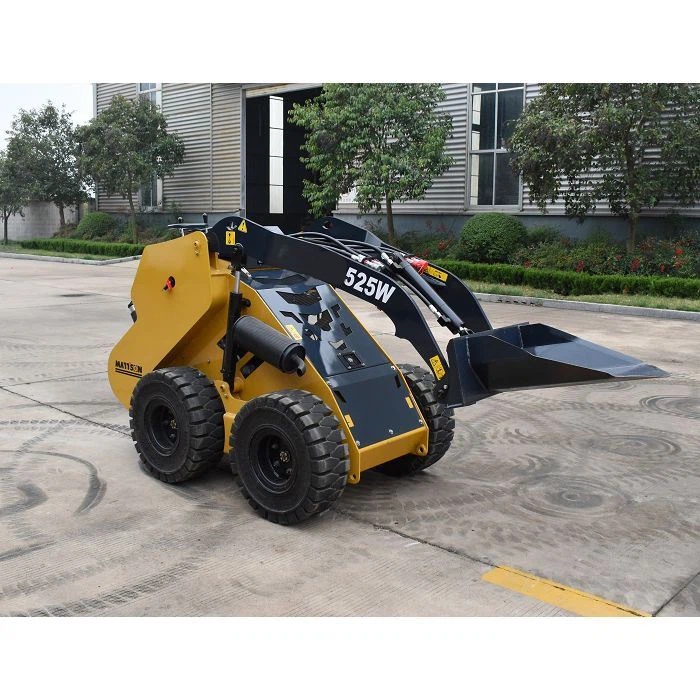

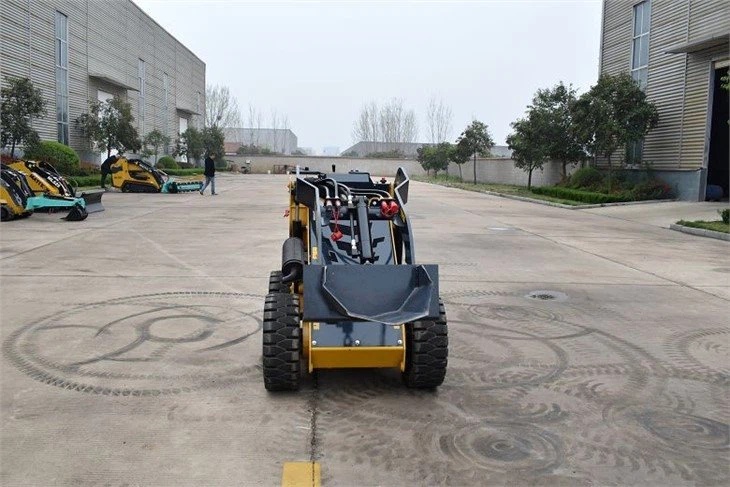

25HP wheel skid steer loader

mtxx01

mtxx02

Product Specifications

ITEMS	DIMENSIONS		ITEMS	DIMENSIONS
A	Angle of Departure	22°	L	Operating Height	2623 mm
B	Carry Position	176 mm	M	Rollback @ carry Position	20°
C	DumpAngle @ Maximum Height	37°	N	Rollback Fully Raised @ Maximum Height	93°
D	Dump Height with Standard Bucket	1279 mm	N	Rollback Fully Raised @ Maximum Height	93°
E	Dump Reach @ Maximum Height	834 mm	O	Wheel Base	775 mm
F	Ground Clearance	193mm	P	Turning Radius with Standard Bucket	1621 mm
G	Ground Clearance-under platform	185 mm	Q	Width 23×8.5-12	1080 mm
H	Height to Bucket Hinge Pin	1867 mm	Q	Width 23×8.5-12	1080 mm
I	Height	1297 mm	R	Wheel Tread 23×8.5-12	856 mm
J	Length without Attachment	1969 mm	R	Wheel Tread 23×8.5-12	856 mm
K	Length with Standard Bucket	2605 mm	S	Width with 36" Bucket	1250 mm
