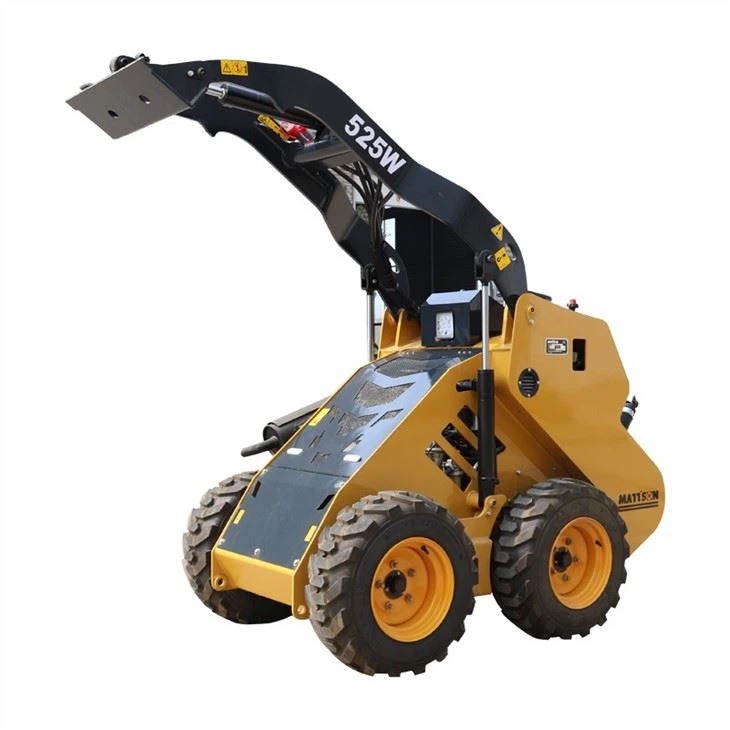

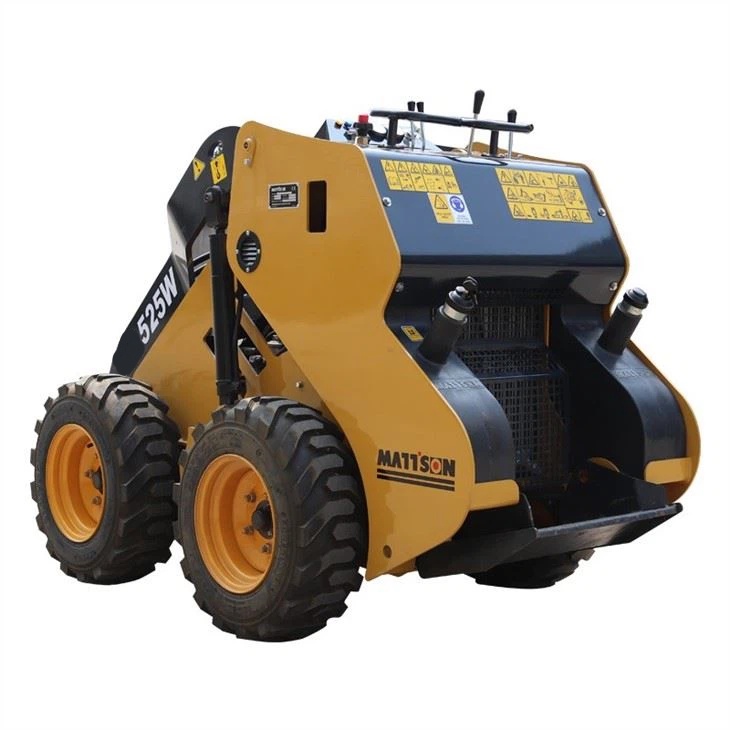

Mini Wheel Loaders

Mini Wheel Loaders

Product Description

Product Features 1.Loader with compact dimensions can easily drive through narrow passages and doors. 2.Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance. 3.Powerful engine and perfectly matched hydraulics...

Inquire Now

Add To Cart

Product Description

Product Features

1.Loader with compact dimensions can easily drive through narrow passages and doors.

2.Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.

3.Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.

4.Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.

5.The operator area is spacious and laid out to provide comfort and ease of operation.

6.Excellent engine provides excellent power with minimal fuel use for more productivity per tank.

IMG_20170619_161148

IMG_20170619_161213

IMG_20170619_160857

Technical Specifications

Item	Main description	Units-Metrics	Units-US
A	Angle of Departure	22°	22°
B	Carry Position	176 mm	7 in
C	Dump Angle @ Maximum Height	37°	37°
D	Dump Height with Standard Bucket	1279 mm	50 in
E	Dump Reach @ Maximum Height	834 mm	33 in
F	Ground Clearance	193 mm	8 in
G	Ground Clearance-under platform	185 mm	7 in
H	Height to Bucket Hinge Pin	1867 mm	74 in
I	Height	1297 mm	51 in
J	Length without Attachment	1969 mm	78 in
K	Length with Standard Bucket	2605 mm	102 in
L	Operating Height	2623 mm	103 in
M	Rollback @ carry Position	20°	20°
N	Rollback Fully Raised @ Maximum Height	93°	93°
O	Ground Contact Length	775 mm	31 in
P	Turning Radius with Standard Bucket	1621 mm	64 in
Q	Width (23×8.5-12 tires)	1080 mm	43 in
R	Wheel Tread (over 23×8.5-12 tires)	856 mm	34 in
S	Width with 36" Bucket	1250 mm	49 in
